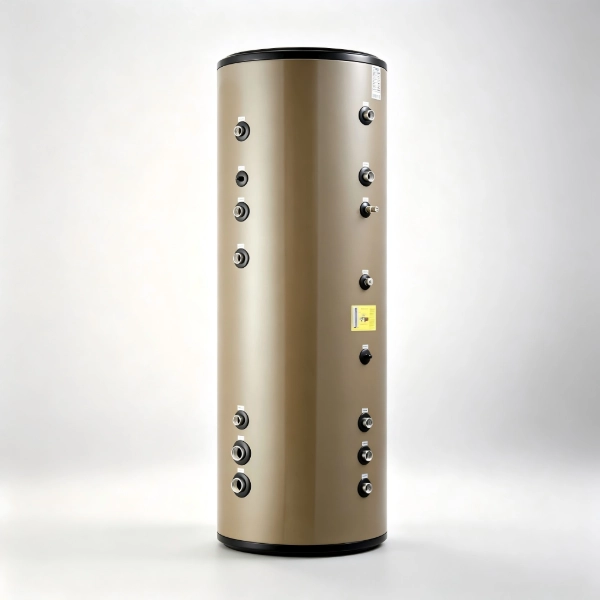

ODM Buffer Tank Design for Stable Heat Pump Operation and Water Flow

How Buffer Tank Design Influences Heat Pump Performance

Heat pump performance depends on more than the heating unit itself. Water volume, circulation rate, temperature variation, and control settings all influence how smoothly a heating installation operates. When these factors are not properly matched, equipment may experience frequent cycling, unstable water temperatures, or inconsistent heat distribution. An appropriately designed buffer tank helps address these challenges by providing additional water volume and supporting more stable operation.

An ODM buffer tank gives heating equipment brands and distributors the opportunity to develop products around their application requirements. Legend offers stainless steel buffer tank options with different capacities, insulation configurations, and material choices. For OEM and ODM buyers, coordinating tank specifications with heat pump performance requirements can improve product compatibility and simplify equipment integration.

ODM Buffer Tank Design for Stable Water Flow

Water flow plays an important role in heat pump operation. When circulation varies significantly or the available water volume is insufficient, the heating unit may struggle to maintain consistent operating conditions. A correctly sized buffer tank can provide additional water capacity and help accommodate changes in demand, although its effectiveness depends on the hydraulic layout and control strategy.

An ODM buffer tank should therefore be selected according to the heat pump manufacturer's minimum water volume, required flow rate, operating temperature range, and control requirements. The tank must also be compatible with the circulation pumps, valves, piping, and other connected components. Evaluating these factors together helps prevent selection errors that may compromise performance or increase installation costs.

Selecting Capacity for Heat Pump Applications

Buffer tank capacity affects thermal stability, equipment cycling, and installation requirements. A tank with insufficient capacity may not provide the buffering needed for the intended heating circuit, while excessive capacity can increase water heating time, material costs, and space requirements. The objective is to identify a practical capacity that meets the equipment specifications without adding unnecessary volume.

Legend offers buffer tank capacities ranging from 60 to 2000 litres, providing options for different residential and commercial heating applications. However, capacity should not be selected by building size alone. Heat pump output, minimum operating time, water volume already present in the circuit, required flow rate, and expected changes in heating demand should all be considered during the selection process.

Stainless Steel Options for Durable Construction

Material selection influences corrosion resistance, service life, and suitability for different water conditions. Legend offers SUS304, SUS316L, and Duplex 2205 stainless steel options, allowing buyers to match tank construction to their project requirements. The appropriate grade depends on water chemistry, operating conditions, and the level of corrosion resistance required.

SUS304 is commonly considered for general water-storage applications, while SUS316L may offer improved resistance to certain corrosive environments. Duplex 2205 provides a combination of high strength and corrosion resistance for applications with more demanding material requirements. Buyers should confirm water compatibility and fabrication specifications before finalizing an ODM buffer tank design.

Insulation and Temperature Stability

A buffer tank stores water within a heating circuit, making insulation an important consideration where heat retention matters. Effective insulation helps limit heat transfer to the surrounding environment, supporting more stable stored-water temperatures and reducing avoidable heat loss. Actual performance depends on insulation properties, thickness, ambient temperature, water temperature, and installation quality.

Legend provides buffer tank options with 45–50 mm foamed insulation and fluorine-free insulation material. When specifying an insulated buffer tank for a heat pump, buyers should also consider the tank's location, available clearance, and the accessibility of connections. Good insulation design should complement appropriate capacity selection rather than compensate for an incorrectly sized tank.

Working Pressure and Temperature Requirements

An ODM buffer tank must be compatible with the operating limits of the connected heating equipment. Legend lists a maximum working pressure of 6 bar, a test pressure of 10 bar, and a maximum operating temperature of 90°C for its buffer tank offerings. These values should be checked against the requirements of the complete installation before procurement.

Working pressure, test pressure, and operating temperature describe different conditions and should not be treated as interchangeable ratings. Buyers should verify the applicable specifications for the selected configuration and ensure that connected pipework, valves, pumps, and safety components are suitable for the intended operating conditions. Clear documentation helps equipment manufacturers establish appropriate design and installation requirements.

ODM Customization for Heating Equipment Brands

For heating equipment manufacturers, ODM cooperation can help align tank specifications with product dimensions, installation layouts, and target markets. Relevant requirements may include tank capacity, stainless steel grade, connection positions, insulation thickness, external finish, and mounting arrangement. Defining these details before production helps reduce compatibility issues during assembly and installation.

Legend offers a range of buffer tank options for residential and commercial applications. Buyers should confirm which customization features are available for their intended configuration, particularly where connection layouts, dimensions, or mounting requirements differ from standard offerings. Drawings and agreed technical specifications can provide a clear reference for procurement, production, and quality inspection.

Quality Control and Supplier Evaluation

A buffer tank's performance depends on manufacturing consistency as well as design. Welding quality, sealing integrity, dimensional accuracy, and inspection procedures can affect the finished product's suitability for heating applications. Buyers evaluating an ODM buffer tank manufacturer should review material specifications, leakage inspection practices, pressure-related testing, and product documentation.

Legend states that its manufacturing process includes online leakage testing and pressure-related inspection, with a three-year warranty. Before placing an order, buyers should confirm the scope of warranty coverage, inspection records, applicable certifications, delivery arrangements, and after-sales support. Establishing these expectations in advance helps improve procurement clarity and long-term supplier cooperation.

Matching Buffer Tank Specifications to Project Needs

The most suitable buffer tank is the one that matches the actual hydraulic and thermal requirements of the application. Heat pump manufacturers should evaluate water volume, flow rate, control strategy, operating limits, and installation space before confirming a design. Material selection and insulation requirements should then be assessed in relation to water quality, expected service conditions, and project priorities.

Legend provides stainless steel buffer tank options for buyers seeking capacity flexibility and application-specific configurations. By confirming technical requirements early and working with a supplier that can clarify available customization, OEM and ODM buyers can improve equipment compatibility and make more informed purchasing decisions.

Frequently Asked Questions

What is an ODM buffer tank used for?

An ODM buffer tank adds water volume to a heating circuit to help accommodate changing thermal demand and support more stable heat pump operation. Its effectiveness depends on correct sizing, hydraulic design, and control settings.

How do I select the right buffer tank capacity?

Consider the heat pump manufacturer's minimum water volume, required flow rate, heating output, existing circuit volume, and expected operating conditions. The required capacity should be calculated from the application rather than selected solely by property size.

Which stainless steel material should I choose?

SUS304 may suit general applications, while SUS316L and Duplex 2205 can be considered where particular corrosion-resistance or strength requirements apply. Water chemistry and operating conditions should guide the final choice.

What pressure and temperature limits should I check?

Legend lists a maximum working pressure of 6 bar and a maximum operating temperature of 90°C for its buffer tank offerings. Confirm the applicable ratings for the selected configuration and all connected components before installation.

Can Legend support ODM buffer tank requirements?

Legend offers buffer tank options in different capacities and stainless steel materials. Buyers should contact the company to confirm available customization, connection arrangements, insulation specifications, documentation, and production requirements for their projects.
